DIN 480 - Square Head Bolts

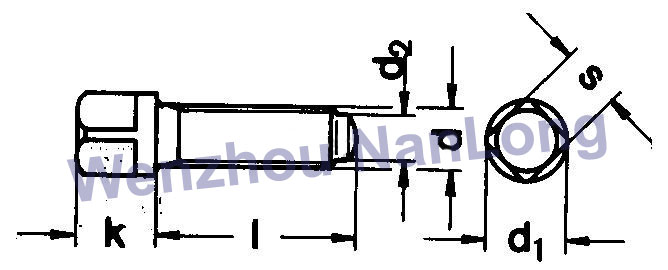

DIN 480 - Square Head Bolts



d
M8
M10
M12
M16
M20
M24
P
1.25
1.5
1.75
2
2.5
3
a
max
4
4.5
5.3
6
7.5
9
c
min
2.88
2.88
3.85
3.85
4.85
5.85
man
3.12
3.12
4.15
4.15
5.15
6.15
dc
max
10
13
17
21
22
27
28
32
min
9.42
12.3
16.3
20.16
21.16
26.16
27.16
31
dp
max
5.5
7
8.5
12
15
18
min
5.32
6.78
8.28
11.73
14.73
17.73
k
11
13
16
20
25
28
min
10.78
12.78
`5.78
19.74
24.74
27.74
max
11.22
13.22
16.22
20.26
25.26
28.26
k
min
5.5
6.9
8.3
11.1
13.8
15.2
r
min
0.4
0.4
0.6
0.6
0.8
0.8
s
max
8
10
13
16
17
21
22
24
min
7.78
9.78
12.73
15.73
16.73
20.67
21.67
23.67
z
min
2
2.5
3
4
5
6
max
2.25
2.75
3.25
4.3
5.3
6.3
z
1
1
1.25
1.75
2
2.5
