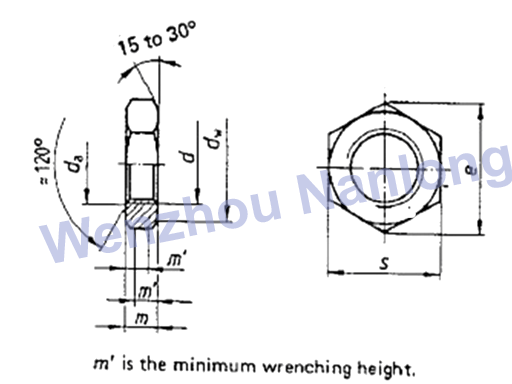

DIN 439 B - Hexagon Nuts - 0,5d Chamfered

DIN 439 B - Hexagon Nuts - 0,5d Chamfered



Thread size (d)
M1.6
(M1.8)
M2
M2.5
M3
(M3.5)
M4
M5
M6
P1)
0.35
0.35
0.4
0.45
0.5
0.6
0.7
0.8
1
da       min.
1.6
1.8
2
2.5
3
3.5
4
5
6
         max.=nominal size
1.84
2.06
2.3
2.9
3.45
4
4.6
5.75
6.75
dw       min.
2.4
2.7
3.1
4.1
4.6
5.1
5.9
6.9
8.9
e        min.
3.48
3.82
4.32
5.45
6.01
6.58
7.66
8.79
11.05
m        max.=nominal size
1
1.1
1.2
1.6
1.8
2
2.2
2.7
3.2
         min.
0.75
0.85
0.95
1.35
1.55
1.75
1.95
2.45
2.9
m2       min.
0.6
0.68
0.76
1.08
1.24
1.4
1.56
1.96
2.32
s2),3)  max.=nominal size
3.2
3.5
4
5
5.5
6
7
8
10
         min.
3.08
3.38
3.82
4.82
5.32
5.82
6.78
7.78
9.78
Thread size (d)
M8
M10
M12
(M14)
M16
(M18)
M20
(M22)
M24
M8*1
M10*1
M12*1.5
(M14*1.5)
M16*1.5
(M18*1.5)
M20*2
(M22*1.5)
M24*2
/
M10*1.25
M12*1.25
/
/
(M18*2)
M20*1.5
(M22*2)
M24*1.5
P1)
1.25
1.5
1.75
2
2
2.5
2.5
2.5
3
da       min.
8
10
12
14
16
18
20
22
24
         max.=nominal size
8.75
10.8
13
15.1
17.3
19.5
21.6
23.8
25.9
dw       min.
11.6
15.6
17.4
20.5
22.5
24.9
27.7
29.5
33.2
e        min.
14.38
18.9
21.1
24.49
26.75
29.56
32.95
35.03
39.55
m        max.=nominal size
4
5
6
7
8
9
10
11
12
         min.
3.7
4.7
5.7
6.42
7.42
8.42
9.1
9.9
10.9
m2       min.
2.96
3.76
4.56
5.14
5.94
6.74
7.28
7.92
8.72
s2),3)  max.=nominal size
13
17
19
22
24
27
30
32
36
         min.
12.73
16.73
18.67
21.67
23.67
26.16
29.16
31
35
Thread size (d)
(M27)
M30
(M33)
M36
(M39)
M42
(M45)
M48
(M52)
(M27*2)
M30*2
(M33*2)
M36*3
(M39*3)
M42*3
(M45*3)
M48*3
(M52*3)
/
/
/
M36*2
(M39*2)
M42*2
(M45*2)
M48*2
(M52*2)
(M27*1.5)
M30*1.5
(M33*1.5)
M36*1.5
(M39*1.5)
M42*1.5
(M45*1.5)
M48*1.5
(M52*1.5)
P1)
3
3.5
3.5
4
4
4.5
4.5
5
5
da       min.
27
30
33
36
39
42
45
48
52
         max.=nominal size
29.2
32.4
35.6
38.9
42.1
45.4
48.6
51.8
56.2
dw       min.
38
42.7
46.6
51.1
55.9
60
64.7
69.4
74.2
e        min.
45.2
50.85
55.37
60.79
66.44
71.3
76.95
82.6
88.25
m        max.=nominal size
13.5
15
16.5
18
19.5
21
22.5
24
26
         min.
12.4
13.9
15.4
16.9
18.2
19.7
21.2
22.7
24.7
m2       min.
9.9
11.1
12.3
13.5
14.6
15.8
17
18.2
19.8
s2),3)  max.=nominal size
41
46
50
55
60
65
70
75
80
         min.
40
45
49
53.8
58.8
63.1
68.1
73.1
78.1
