DIN 661 - Countersunk Head Rivets

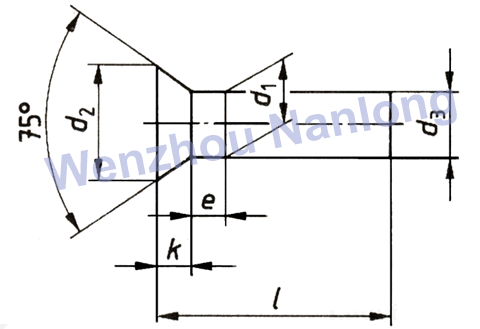

DIN 661 - Countersunk Head Rivets

d1
Nominal
1
1.2
(1.4)
1.6
2
2.5
3
(3.5)
4
5
6
(7)
8
Tolerance
± 0.05
± 0.1
± 0.15
d2
Nominal
1.8
2.1
2.4
2.8
3.5
4.4
5.2
6.3
7
8.8
10.5
12.2
14
Tolerance
h14
h15
d3
Min.
0.93
1.13
1.33
1.52
1.87
2.37
2.87
3.37
3.87
4.82
5.82
6.82
7.76
e
Max.
0.5
0.6
0.7
0.8
1
1.25
1.5
1.75
2
2.5
3
3.5
4
k
Approx.
0.5
0.6
0.7
0.8
1
1.2
1.4
1.8
2
2.5
3
3.5
4
l
Weight (7.85kg/dm3) kg/1000pcs
nominal
Tolerance
-
2
+0.25
0
0.016
0.027
0.032
0.046
-
-
-
-
-
-
-
-
-
3
0.023
0.035
0.042
0.062
0.102
-
-
-
-
-
-
-
-
4
+0.3
0
0.029
0.044
0.058
0.078
0.127
0.163
-
-
-
-
-
-
-
5
0.035
0.053
0.07
0.094
0.152
0.201
0.363
0.518
-
-
-
-
-
6
-
0.062
0.083
0.11
0.177
0.24
0.421
0.596
0.803
-
-
-
-
8
+0.36
0
-
-
0.109
0.142
0.228
0.316
0.537
0.753
1.01
1.62
-
-
-
10
-
-
-
-
0.277
0.392
0.65
0.906
1.21
1.94
2.9
4.17
-
12
+0.43
0
-
-
-
-
-
0.468
0.763
1.06
1.41
2.25
3.32
4.79
6.3
14
-
-
-
-
-
-
0.876
1.22
1.62
2.56
3.82
5.41
7.12
16
-
-
-
-
-
-
0.989
1.38
1.82
2.88
4.28
6.03
7.94
18
-
-
-
-
-
-
-
1.54
2.03
3.2
4.74
6.65
8.77
20
+0.52
0
-
-
-
-
-
-
-

2.25
3.52
5.2
7.28
9.6
22
-
-
-
-
-
-
-
-
-
3.83
5.66
7.91
10.4
25
-
-
-
-
-
-
-
-
-
4.3
6.35
8.84
11.6
28
-
-
-
-
-
-
-
-
-
-
7.03
9.77
12.9
30
-
-
-
-
-
-
-
-
-
-
7.49
10.4
13.7
32
+0.62
0
-
-
-
-
-
-
-
-
-
-
-
11
14.4
35
-
-
-
-
-
-
-
-
-
-
-
11.9
15.7
38
-
-
-
-
-
-
-
-
-
-
-
-
17
40
-
-
-
-
-
-
-
-
-
-
-
-
17.8
