DIN 580 - Lifting Eye Bolts

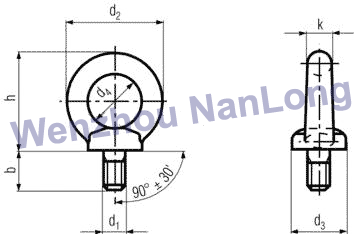

DIN 580 - Lifting Eye Bolts

d
M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72*6 M80*6 M100*6
d2
20 25 30 35 40 50 65 75 85 100 110 120 150 170 190
d3
36 45 54 63 72 90 108 126 144 166 184 206 260 296 330
d4
20 25 30 35 40 50 60 70 80 90 100 110 140 160 180
e
6 8 10 12 14 18 22 26 30 35 38 42 50 55 60
f
2.5 3 3.5 4 5 6 7 8 9 10 11 12 12 12 12
g(h13)
6 7.7 9.4 13 16.4 19.6 25 30.3 35.6 41 48.3 55.7 63.7 71.7 91.7
h
36 45 53 62 71 90 109 128 147 168 187 208 260 298 330
k
8 10 12 14 16 20 24 28 32 38 42 48 60 68 75
l (+/- 1/2 IT 15)
13
17
20.5
27
30
36
45
54
63
68
78
90
100
112
130
m
10
12
14
16
19
24
28
32
38
46
50
58
72
80
88
r1
4
4
6
6
8
12
15
18
20
22
25
25
35
35
40
r2
1
1
2
2
2
2
3
3
3
4
4
4
4
4
4
r3
1
1
1.2
1.2
1.6
2
2
2
2.5
2.5
3
3
3
3
3
Mini Breaking Load,in Kn
8.4
13.8
19.8
41.4
70.8
106
188
270
372
504
678
942
1180
1650
2350
Maximum Lifting Capacity with One String in kgs
140
230
340
700
1200
1800
3200
4600
6300
8600
11500
1600
20000
28000
40000
Maximum Lifting Capacity with two String (45 degree)in kgs
100
170
240
500
860
1290
2300
3300
4500
6100
8200
11000
14000
20000
29000
