WU XU Suction Filter|Suction Strainer|China


WU XU Suction Filter|Suction Strainer|China

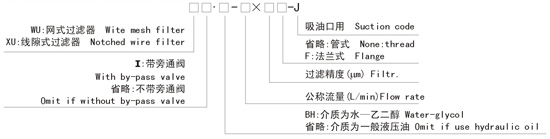

Model Code

Technical Data
wu


Model


Dia.(mm)


Flow(L/min)


Initial △P(MPa)


Filtr.(μm)


By-pass valve setting(MPa)


Connecting

W/X U-16×*-J

12

16

≤0.01

80
100
180
(仅WU)

-


Thread

W/X U-25×*-J

15

25

0.02

W/X U-40×*-J

20

40

W/X U-63×*-J

25

63

W/X U-100×*-J

32

100

W/X U-160×*-J

40

160

W/X U-250×*-J

50

250


Flange

W/X U-400×*-J

65

400

W/X U-630×*-J

80

630


Mounting Size 2,WU

Model

Size(mm)

H

D

M(d)

d1

WU-16×*-J

84

Ф35

M18×1.5

-

WU-25×*-J

104

Ф45

M22×1.5

-

WU-40×*-J

124

M27×2

-

WU-63×*-J

103

Ф70

M33×2

-

WU-100×*-J

153

M42×2

-

WU-160×*-J

200

Ф82

M48×2

-

WU-250×*F-J

203

Ф88

Ф50

Ф74

WU-400×*F-J

250

Ф105

Ф65

Ф93

WU-630×*F-J

302

Ф118

Ф80

Ф104

WU-225×*G-J

165

Ф150

G2"

-

WU-350×*G-J

203

Ф150

G2 1/2"

-

WU-800×*G-J

340

Ф150

G2 1/2"

-

WU-1000×*G-J

430

Ф159

G3"

-


2, xu

Model

Size(mm)

H

D

M(d)

d1

XU-6×*-J

73

Ф56

M18×1.5



XU-10×*-J

104

XU-16×*-J

158

XU-25×*-J

125

Ф75

M22×1.5



XU-40×*-J

198

M27×2



XU-63×*-J

186

Ф99

M33×2



XU-100×*-J

288

M42×2



XU-160×*-J

368

Ф118

M48×2



XU-250×*F-J

443

Ф162

Ф50

Ф74

XU-400×*F-J

508

Ф222

Ф65

Ф93

XU-630×*F-J

680

Ф252

Ф80

Ф104


3


Model

Size(mm)


“0”


4PCS

A

B

C

D

D1+0.06/0

D2+0.2/0

D3

d

E0/-0.1

4-Ф

WU-250×*F-J

Ф86

15

9

Ф50

Ф60

Ф54

Ф60

Ф74

2.4

6.7

Ф60×3.1

M6×25

XU-250×*F-J

WU-400×*F-J

Ф105

Ф65

Ф75

Ф70

Ф76

Ф93

Ф75×3.1

XU-400×*F-J

WU-630×*F-J

Ф118

Ф80

Ф90

Ф85

Ф91

Ф104

Ф90×3.1



No.6
