TFA Suction Filter

TFA Suction Filter

Drawing of Oil Circuti

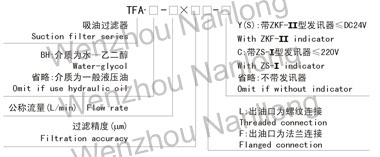

Model Code

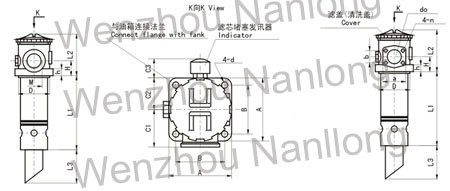

Mounting Size

TFA-25~160

Model	Size(mm)
	L1	L2	L3	H	M	D	A	B	C1	C2	C3	h	4-d
TFA-25×* L- C/Y	93	78	250	25	M22×1.5	Ф62	80	60	45	42	42	9.5	Ф9
TFA-40×* L- C/Y	110				M27×2
TFA-63×* L- C/Y	138	98	350	33	M33×2	Ф75	90	70.7	54	47		10
TFA-100×* L- C/Y	188				M42×2
TFA-160×* L- C/Y	200	119	400	42	M48×2	Ф91	105	81.3	62	53.5		12	Ф11

TFA-250~800

Model	Size(mm)
Model	L1	L2	L3	H	do	D	a	b	4-n	A	B	C1	C2	C3	4-d	h	Q
TFA-250×* F- C/Y	270	119	400	42	Ф50	Ф91	70	40	M10	105	81.3	72.5	53.5	42	Ф11	12	Ф60
TFA-400×* F- C/Y	275	141	450	50	Ф65	Ф110	90	50		125	95.5	82.5	61			15	Ф73
TFA-630×* F- C/Y	325	184	500	65	Ф90	Ф140	120	70		160	130	100	81			15.5	Ф102
		184	500	65	Ф90	Ф140	120	70		160	130	100	81			15.5	Ф102
