DIN 603 Mu - Carriage Bolts With Hexagon Nuts

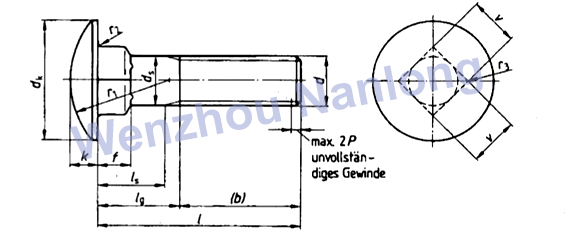

DIN 603 Mu - Carriage Bolts With Hexagon Nuts

d
M5
M6
M8
M10
M12
M16
M20
0.8
1
1.25
1.5
1.75
2
2.5
2)
16
18
22
26
30
38
46
          3)
22
24
28
32
36
44
52
4)
-
-
41
45
49
57
65
dk
max.
13.55
16.55
20.65
24.65
30.65
38.8
48.8
        min.
12.45
15.45
19.35
23.35
29.35
37.2
45.2
ds
max.
5
6
8
10
12
16
20
      min.
4.52
5.52
7.42
9.42
11.3
15.3
19.16
f
max.
4.1
4.6
5.6
6.6
8.75
12.9
15.9
         min.
2.9
3.4
4.4
5.4
7.25
11.1
14.1
max.
3.3
3.88
4.88
5.38
6.95
8.95
11.05
          min.
2.7
3.12
4.12
4.62
6.05
8.05
9.95
r1            ≈
10.7
12.6
16
19.2
24.1
29.3
33.9

0.5
0.5
0.5
0.5
1
1
1
r3
max.
0.75
0.9
1.2
1.5
1.8
2.4
3
v5
max.
5.48
6.48
8.58
10.58
12.7
16.7
20.84
         mix.
4.52
5.52
7.42
9.42
11.3
15.3
19.16
