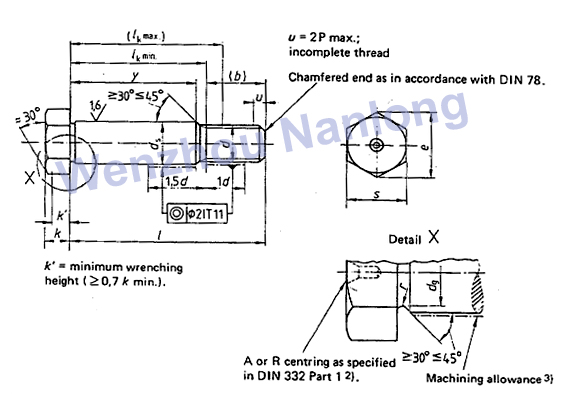

DIN 610 - Hex fitting Bolts w/short Threaded Portion

DIN 610 - Hex fitting Bolts w/short Threaded Portion

d (Thread)
M8
M10
M12
(M14)
M16
(M18)
M20
(M22)
M24
P
Pitch
1.25
1.5
1.75
2
2
2.5
2.5
2.5
3
1
1.25
1.25
1.5
1.5
1.5
1.5
1.5
2
-
1
1.5
-
-
2
2
2
1.5
b
L≤125
11.5
13.5
15.5
17
19
21.5
22.5
24.5
26.5
125<L≤200
13.5
15.5
17.5
19
21
23.5
24.5
26.5
28.5
L>200
18.5
20.5
22.5
24
26
28.5
29.5
31.5
33.5
ds
(k6)
Nomin.al Size
9
11
13
15
17
19
21
23
25
max.
9.01
11.012
13.012
15.012
17.012
19.015
21.015
23.015
25.015
min..
9.001
11.001
13.001
15.001
17.001
19.002
21.002
23.002
25.002
dg
min.
7.9
9.9
11.5
13.5
15.5
17.5
19.1
21.1
23.1
max.
8.2
10.2
11.8
13.8
15.8
17.8
19.4
21.4
23.4
e
min.
14.38
17.77/18.9
19.85/20.85
22.78/23.91
26.17
29.56
32.95
35.03/37.29
39.55
k
Nomin.al Size
5.3
6.4
7.5
8.8
10
11.5
12.5
14
15
min.
5.15
6.22
7.21
8.51
9.71
11.15
12.15
13.65
14.65
max.
5.45
6.58
7.79
9.09
10.29
11.85
12.85
14.35
15.35
k'
min.
3.61
4.35
5.05
5.96
6.8
7.81
8.51
9.65
10.26
r
min.
0.4
0.4
0.6
0.6
0.6
0.6
0.8
0.8
0.8
max.
0.55
0.55
0.75
0.75
0.75
0.75
0.95
0.95
0.95
s
max.=nominal size
13
16/(17)
18/(19)
21/(22)
24
27
30
(32)/34
36
min.
12.73
15.73/16.73
17.57/18.48
20.16/21.15
23.16
26.16
29.16
31/33
35
d (Thread)
(M27)
M30
(M33)
M36
(M39)
M42
(M45)
M48
(M52)
P
Pitch
3
3.5
3.5
4
4
4.5
4.5
5
5
2
2
2
3
3
3
3
3
3
-
-
-
-
-
-
-
-
-
b
L≤125
-
-
-
-
-
-
-
-
-
125<L≤200
31.5
34
36
40
42
46
48
51
55
L>200
36.5
39
41
45
47
51
53
56
60
ds
(k6)
Nominal Size
28
32
34
38
40
44
46
50
55
max.
28.015
32.018
34.018
38.018
40.018
44.018
46.018
50.018
55.021
min.
28.002
32.002
34.002
38.002
40.002
44.002
46.002
50.002
55.002
dg
min.
25.7
29.7
31.7
35.7
37.7
41.7
43.7
47.7
52.7
max.
26
30
32
36
38
42
44
48
53
e
min.
45.2
50.85
55.37
60.79
66.44
71.3
76.95
82.6
88.25
k
Nomin.al Size
17
19
21
22
25
26
28
30
33
min.
16.65
18.58
20.58
21.58
24.58
25.58
27.58
29.58
32.5
max.
17.35
19.42
21.42
22.42
25.42
26.42
28.42
30.42
33.5
k'
min.
11.66
13.01
14.41
15.11
17.21
17.91
19.31
20.71
22.75
r
min.
1
1
1
1
1
1
1
1
1
max.
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.15
s
max.=nominal size
41
46
50
55
60
65
70
75
80
min.
40
45
49
53.8
58.8
63.1
68.1
73.1
78.1
